Jinan Xinyuhua Energy Technology Co.,Ltd

Wind Turbine Off Grid Inverter

Wind Turbine Off Grid Inverter

Payment Type: T/T
Incoterm: FOB,CFR,CIF
Min. Order: 10 Bag/Bags

Contact Now Add to Basket

Basic Info

    Model No.: XWA

    Certification: CE

    Nature of Source Flow: Active Inverter

    Phase: Three

    Output Power: >1000W

    Type: DC/AC Inverters

    Circuit Topologies: Other

Additional Info

    Packaging: standard packing

    Transportation: Ocean

    Port: Qingdao

Product Description

Wind Turbine Off Grid Inverter
Wind off-grid power system consists of the wind turbine, controller, battery, Wind Off Grid Inverter and distribution system.Wind generate AC power through the Wind Turbine Generator driven by the wind, and then converted to be DC power. The wind turbine off grid inverter will inverte the DC power to be the right voltage , frequency and pure sine wave AC power to the local load. When the wind speed is very hight to cause high dc voltage, the controller will start beyond full energy by unloading, removing.

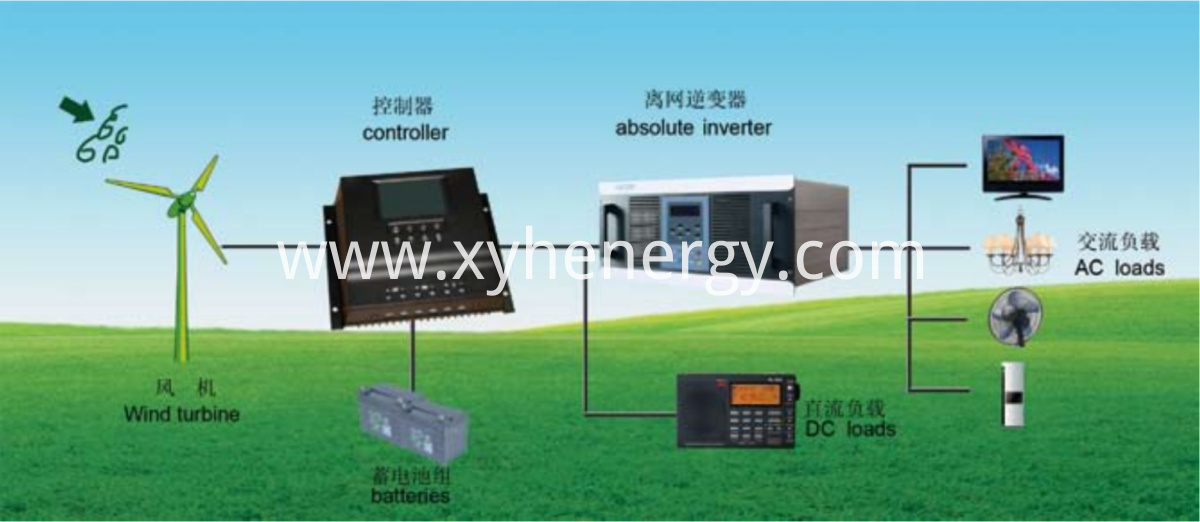

wind off grid system
Features
1.Using IGBT from Mitsubishi or Infineon company as the power components
2.Using American ATEMEL company microprocessor as figure controller
3.Perfect protection and warning functions
4.Circuit frame compact,Max. Efficiency≥94%
5.With wide input voltage range
6.RS232/485 communication,multi communication interface can be selected
7.Big-screen English LCD, perfect display, interface-friendly

Technic Parameter:


Model

XWA220-50KS

XWA220- 100KS

XWA480- 200KS

XWA480- 300KS

XWA480- 500KS

XWA480- 800KS

XWA480- 1000KS

DC input

Input rating voltage(Vdc)

220

480

Input rating current(A)

252.5

505

462

694

1157

1851

2314

Input DC voltage allowing range(Vdc)

187~300

420~800

AC output

Output rating capacity(KVA)

50

100

200

300

500

800

1000

Output rating voltage and frequency

AC380V/220 Vac, 50Hz(Three-phase four-wire)

Output rating current(A)

75.6

151.5

303.9

455.8

759.7

1215.5

1519.4

Output voltage precision(V)

AC380V±3%

Output frequency precision(Hz)

50/60hz±0.05

Wave distortion(THD)

≤3%

Dynamic response

5%

Power factor(PF)

0.8

Overload ability

150%,10 seconds

Crest factor(CF)

3:1

Inverted efficiency

92%

Insulation strength

1500 Vac,1minute

Noise (1meter)

≤55dB

Using condition temperature

-25℃~+55℃

Humidity

0-95%non-condensing

Altitude (m)

≤6000

Dimension(W*D*H)mm

800*600*2260

1000*800*2060

2000*800*2060

5400*600*2260

Weight (Kg)

600

1100

1500

1600

2000

3000

4500

Protection function

Input reversing protection,input low-voltage protection,output over-load protection,output short-circuit protection, over-heat protection


Looking for ideal Wind Off Grid Inverter Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Wind Generator Off Grid Inverter are quality guaranteed. We are China Origin Factory of Wind off Grid Inverter for Generator. If you have any question, please feel free to contact us.

Product Categories : Wind Inverter > Wind Off Grid Inverter
